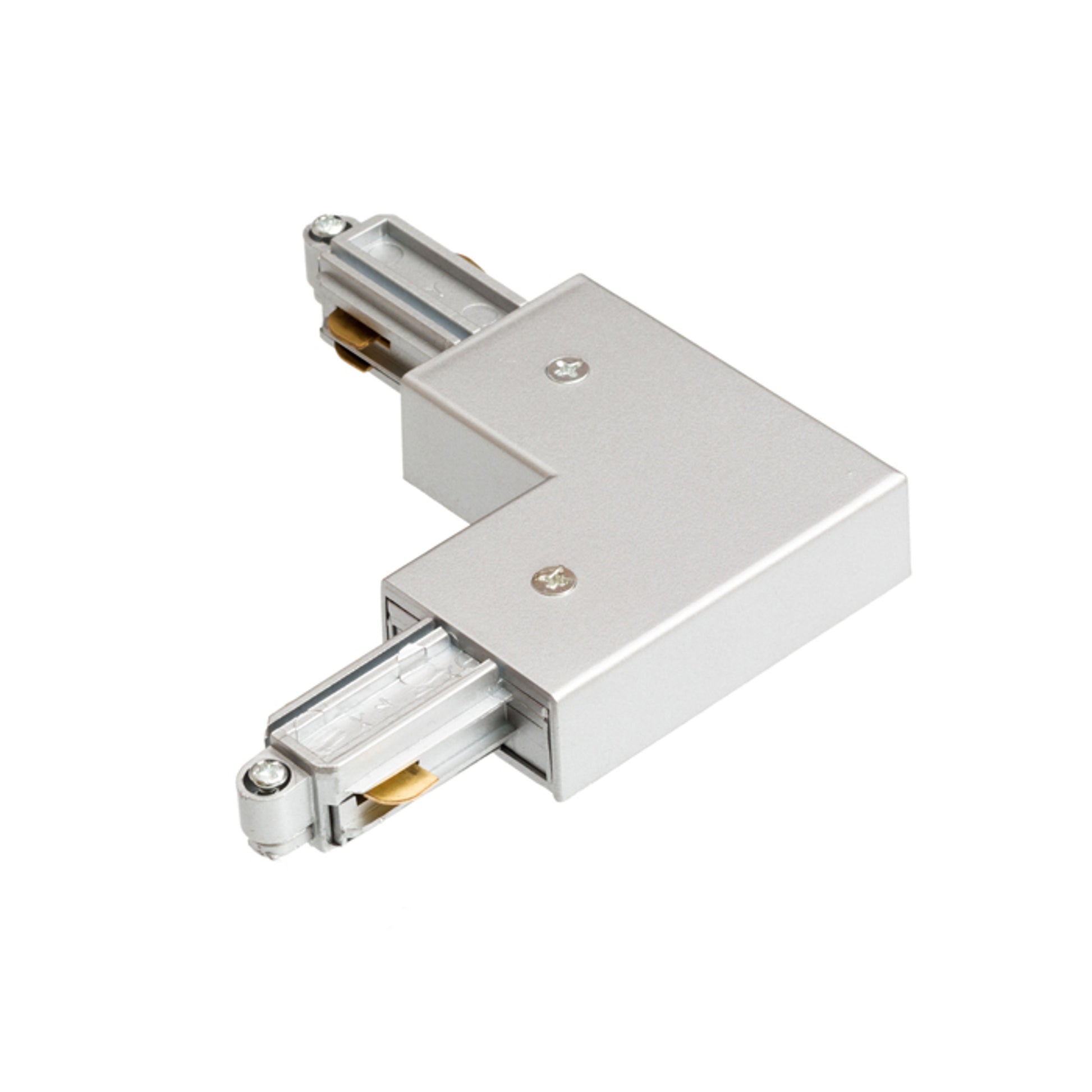

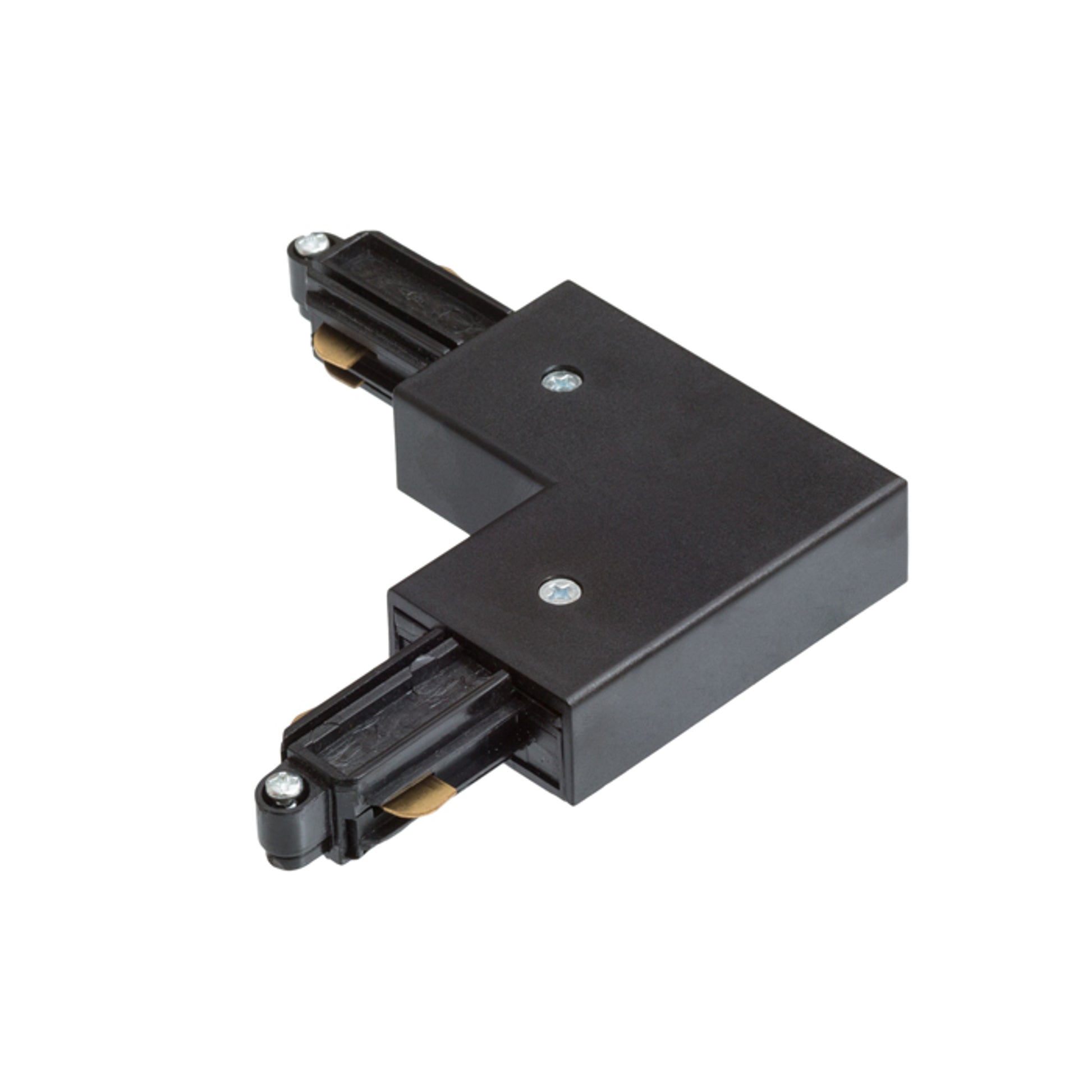

This component for the 1f rail system is used to create an external corner connection in a single-circuit rail assembly. It allows you to connect the bars in an L shape and at the same time fulfills an important role where it is necessary to supply power within the designed system.
It is not a separate lamp, but a functional element that helps to assemble the strip distribution clearly and technically correctly. This makes it suitable for projects where the continuity of individual parts and a clean corner connection solution are important.
Compatibility and use in the system
The element is intended for use within 1F rail systems and fits into assemblies with a single-circuit rail. In practice, it is used when changing the direction of the guide rail in the corner, where it is necessary to maintain the functionality and logical continuity of the entire installation.
The component is suitable for solutions in which the system is not only to be connected, but also to be prepared for power supply in the appropriate place of the assembly. The maximum load of 16 A gives certainty for normal use within the designed strip distribution.
Key component features for 1f rail system 1F L JOINT OUTER

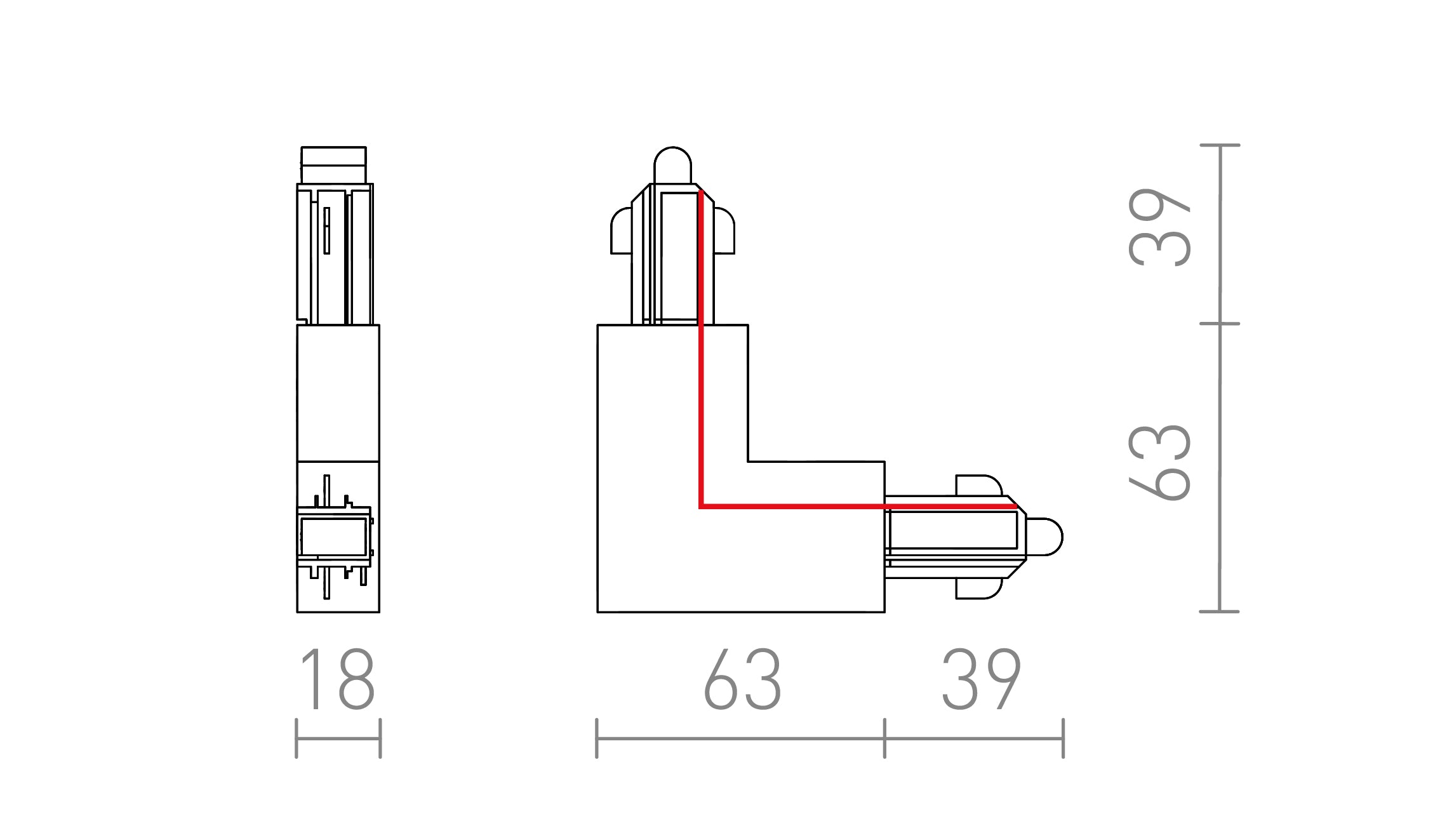

- Compact dimensions for integration into a slat assembly.
- 230 V power supply for connection to a normal installation.
Technical context and installation
When designing, it is good to take into account that this system element solves a specific technical situation in the corner of the assembly and is not intended as an end lighting element. Its benefit lies primarily in the fact that it helps to create a functional and clean route of slats where the direction changes.
For proper integration into the project, it is advisable to think in advance about the location of the power supply and the continuity of other parts of the system. Due to its purpose, it is suitable wherever a clear composition of the 1F system and a reliable connection of individual sections are important.
