EUTRAC CONNETTORE L PER BINARI DA INCASSO (POLARITÀ ESTERNA)

EUTRAC L connector for recessed 3-circuit tracks (outer polarity is intended for connection to a recessed rail and practical creation of an L-connection. It helps to connect the individual parts of the molding system so that the assembly makes sense also from the point of view of distribution in space.

Compatibility and use in the system

It is intended for the 3f EUTRAC rail system and for connection with a recessed three-circuit rail. It is suitable where you need to solve the wiring in an L-shaped space and at the same time keep the power supply within the rail system.

Coupling key features for 3f rail system EUTRAC L connector for recessed 3-circuit tracks (outer polarity

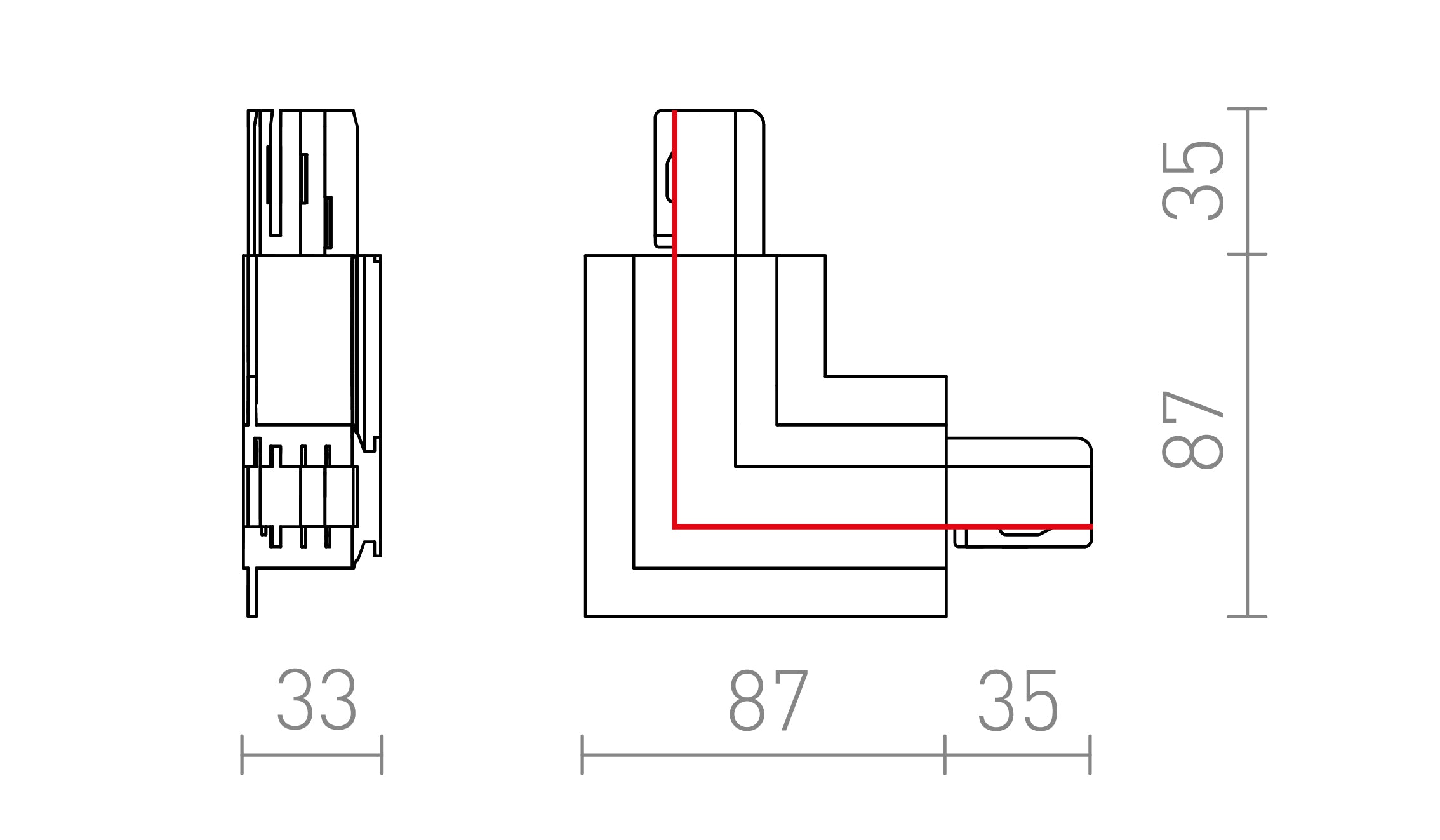

• Dimensions 3.4/11.6/11.6 simplify location planning and assembly.
• 230 V power supply for connecting to a normal installation.

Technical context and installation

Due to the fact that this coupler is intended for power supply within the 3f rail system, it is suitable for assembling the functional sections of the flush-mounted three-circuit EUTRAC rail. The maximum permissible load is 16 A, so it can be used for corresponding lighting solutions within the given limits.

When installing, it is practical to consider the dimensions of the coupling when designing the route and placing it in the space, so that you have enough room for wiring and mounting connections.
