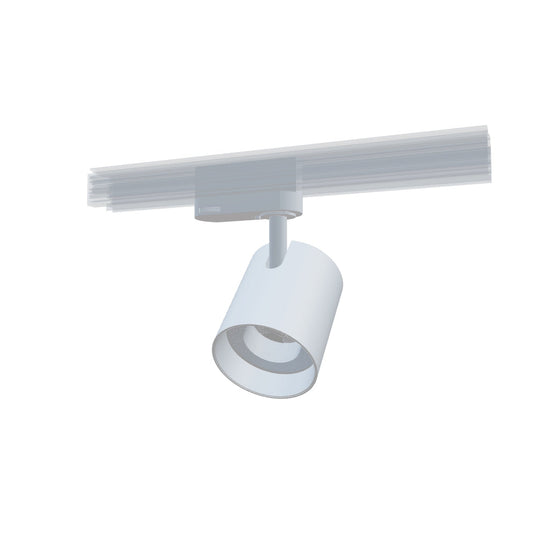

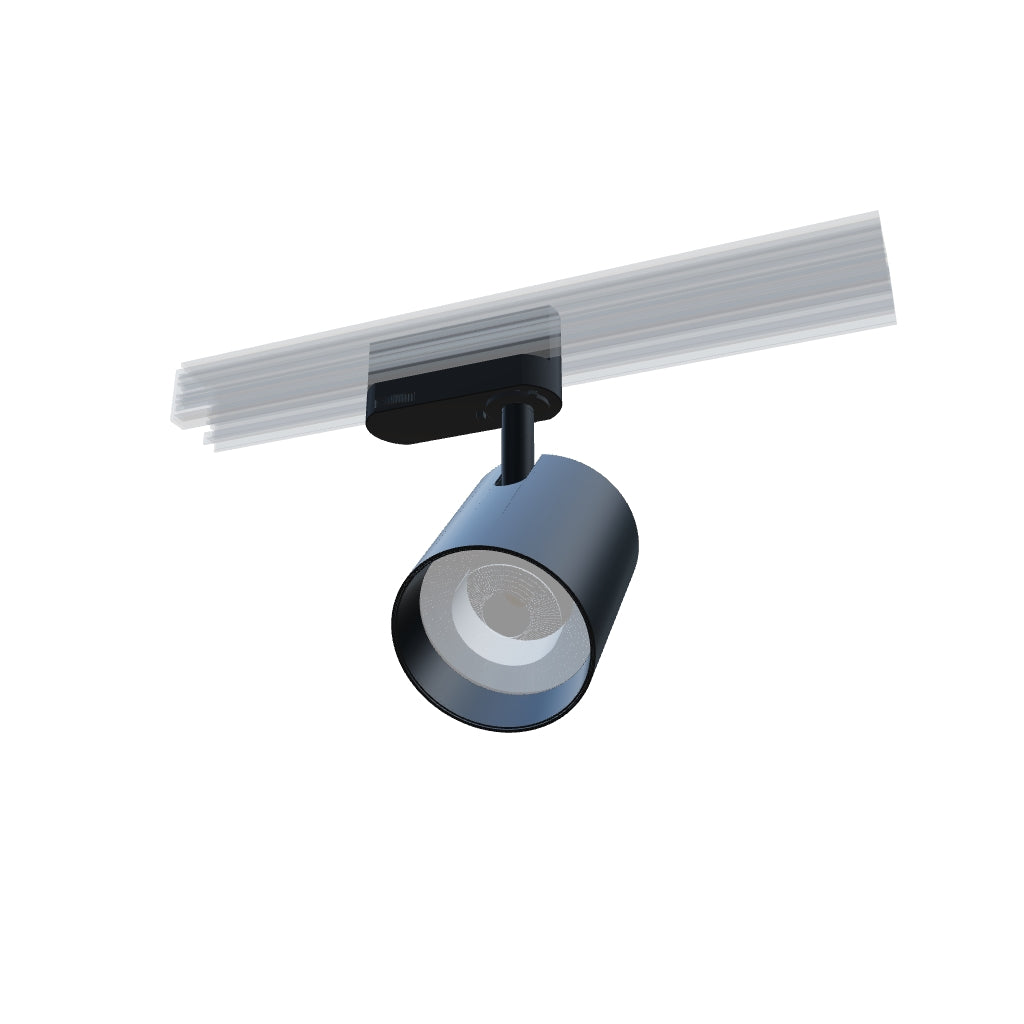

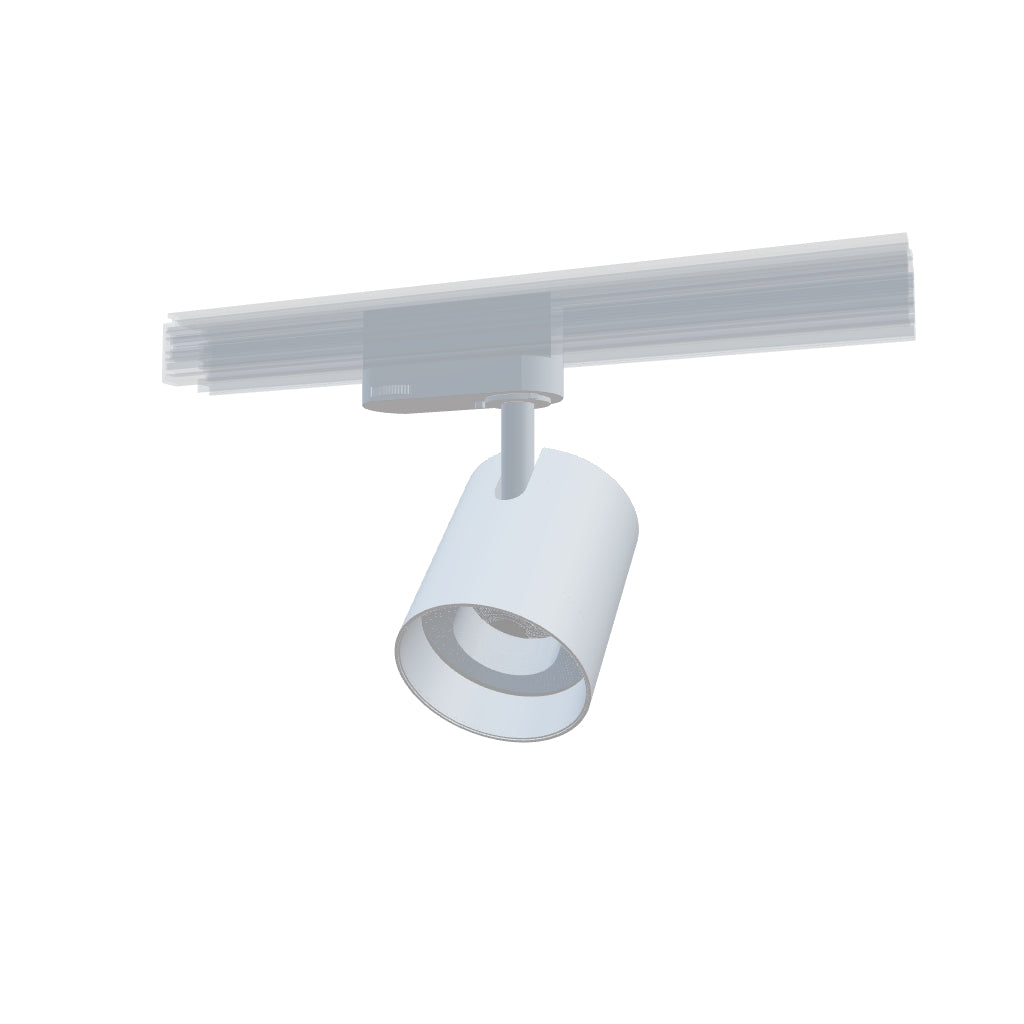

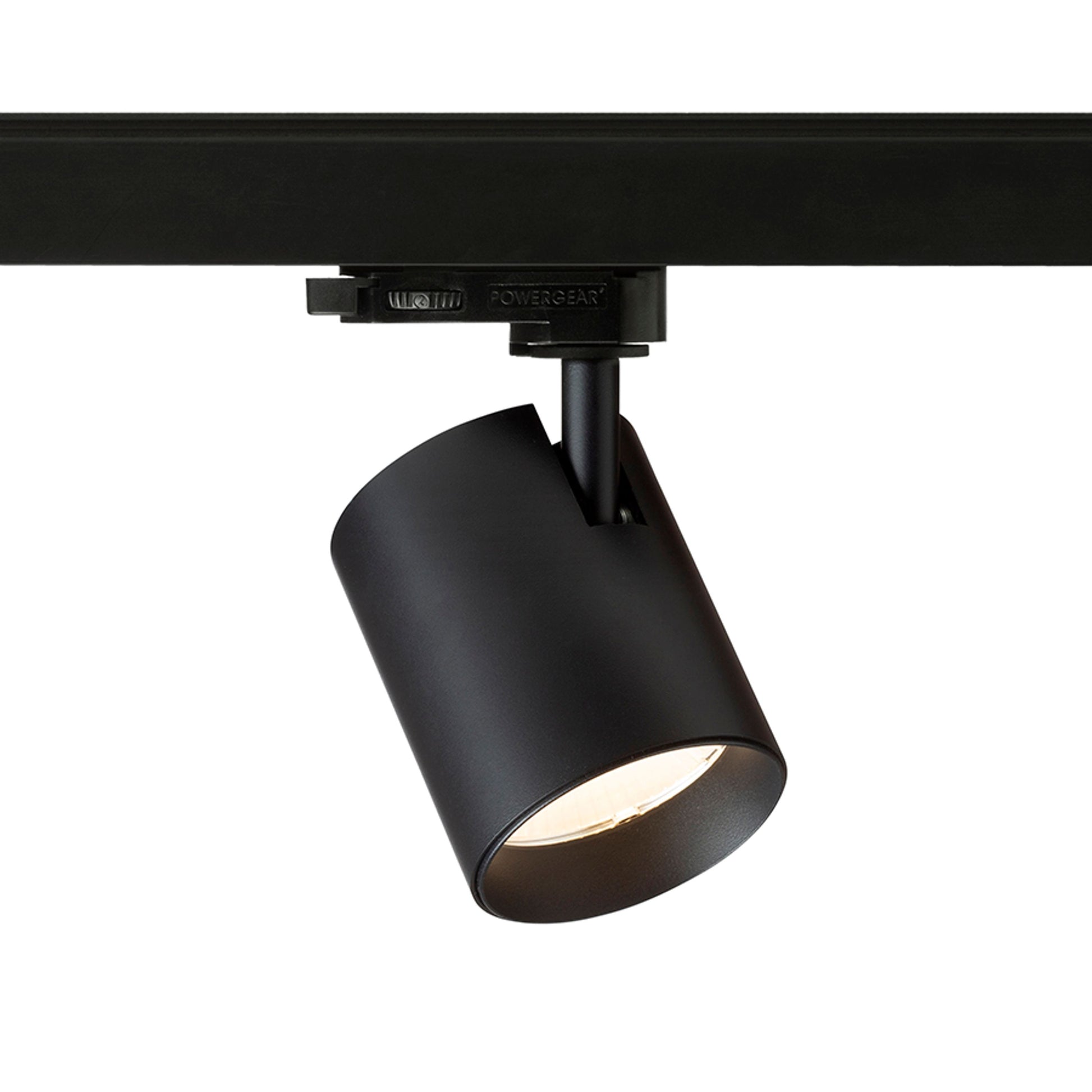

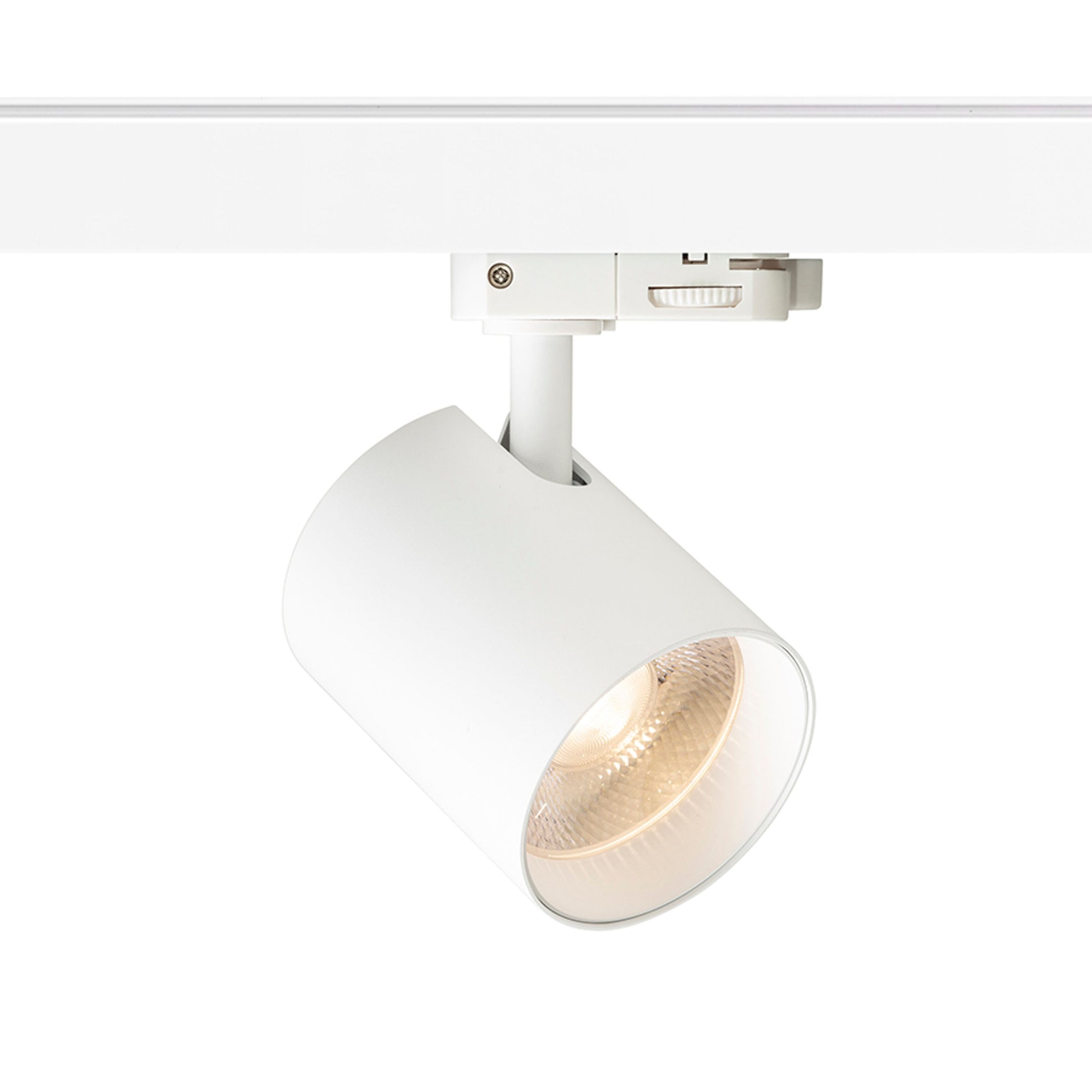

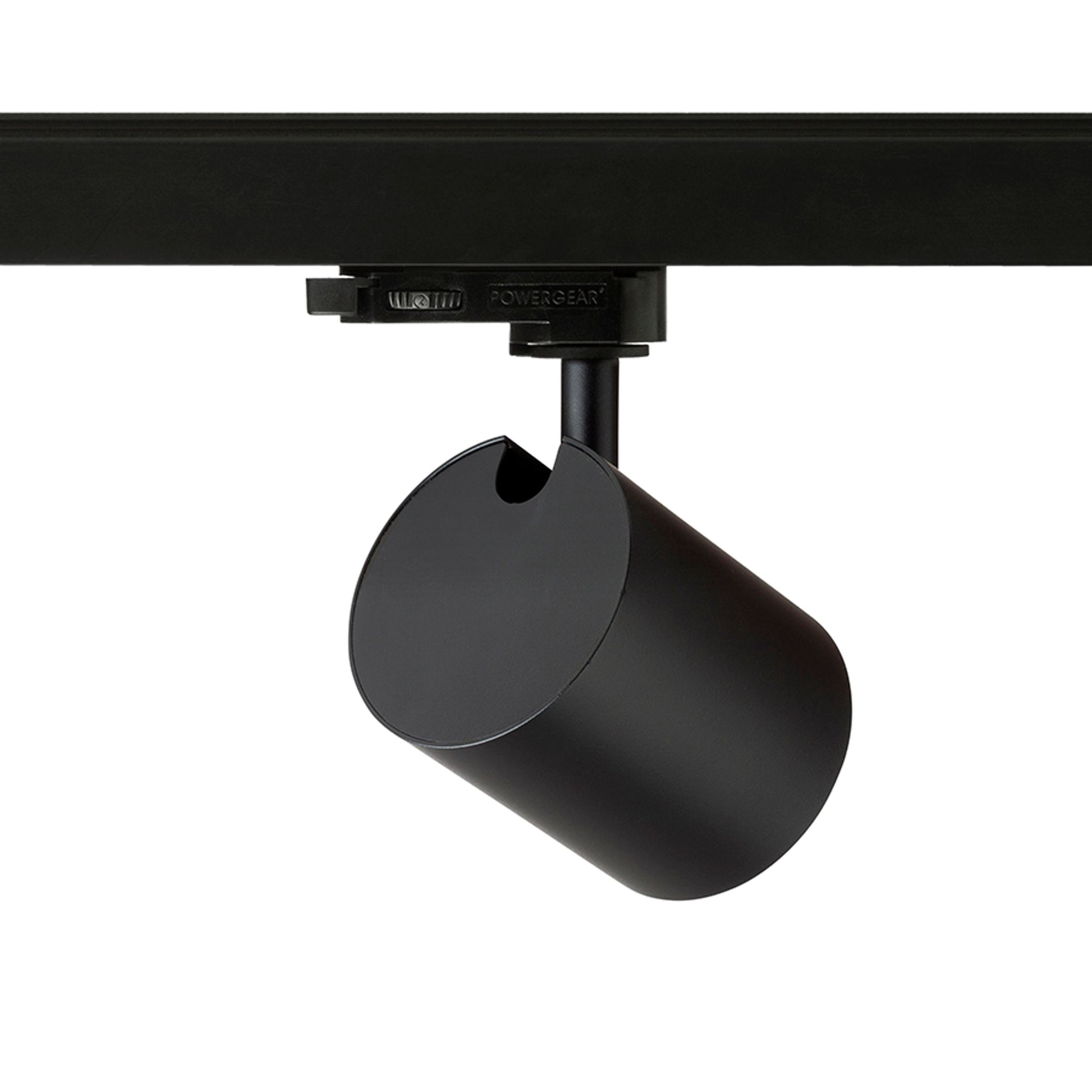

IRIS 7 for 3-circuit tracks three-ring rail component designed for 3f rail system. It is part of a set that helps create precisely focused lighting in the desired zone.
Compatibility and use in the system
As a component for the 3f rail system, it fits into the 3f rail category and functions as an element for the 3f spot. In practice, you use it where you want to supplement or expand an existing strip assembly and better control the direction of light to a specific place.
Key features of the component for the 3f rail system IRIS 7 for 3-circuit tracks LED 24°
- Luminous flux 1046.0 lm to illuminate the desired zone.
- Chromaticity temperature 3000 K for warm white light.
- The light source is included in the package for faster assembly.
- The power transformer is included in the package for direct installation.
- Light angle 24° for targeted light scattering.
Technical context and installation
The package includes both a light source and a power transformer, so assembling the assembly is more practical from the start. Thanks to the light angle of 24°, this element is suitable for situations where you want to direct the light to a specific area and not scatter it unnecessarily into the surroundings.

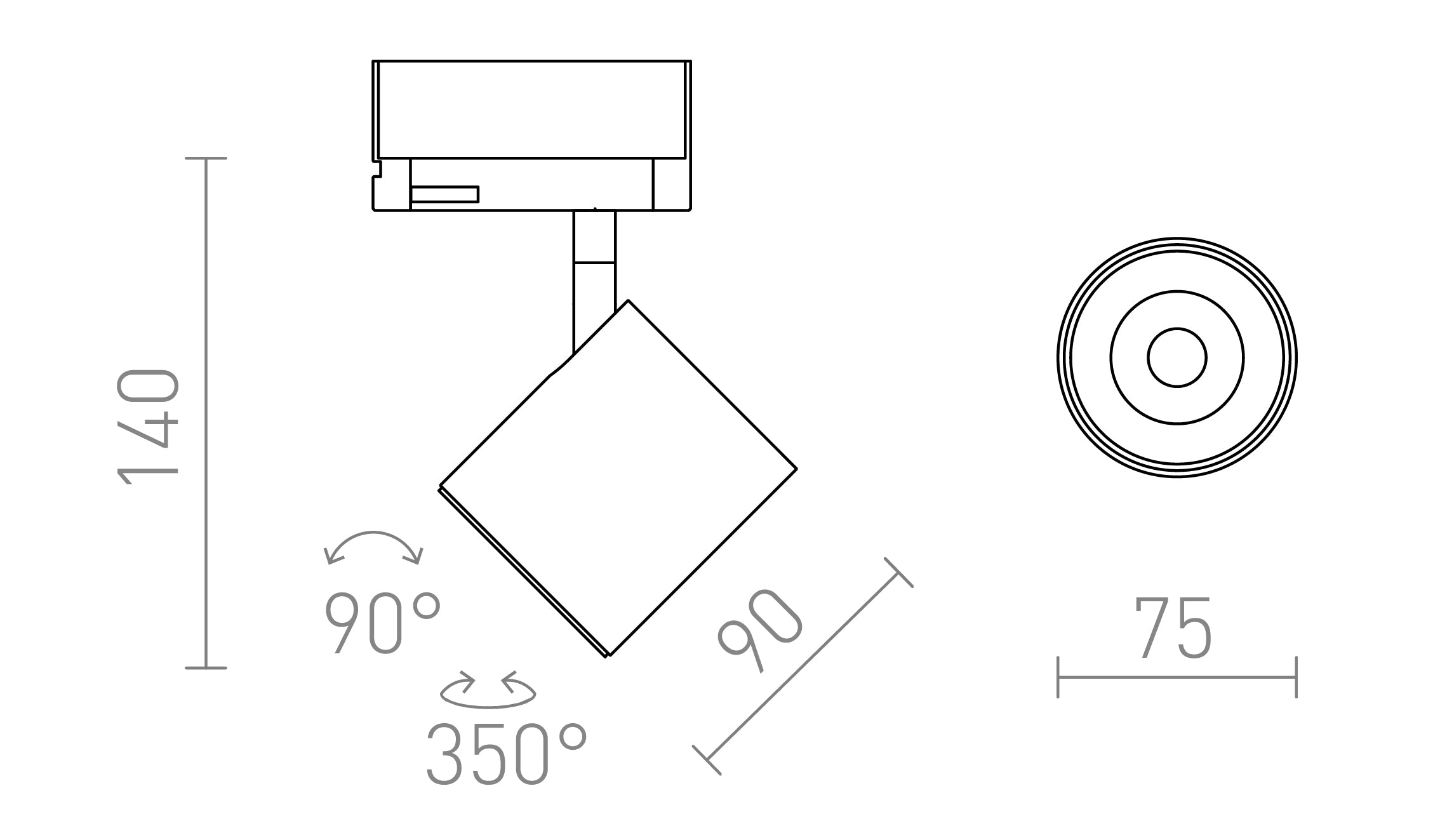

For a finer setting of the direction, you will also appreciate the possibility of a 90° tilt, as well as a 350° rotation, which will allow you to better adapt the direction to your needs.
A lifetime of up to 25,000 h reduces the need for frequent replacement and helps maintain the lighting without unnecessary interventions.
